參數(shù)

數(shù)值

Ytterbium Lifetime (μs)

950

Erbium Lifetime (ms)

9

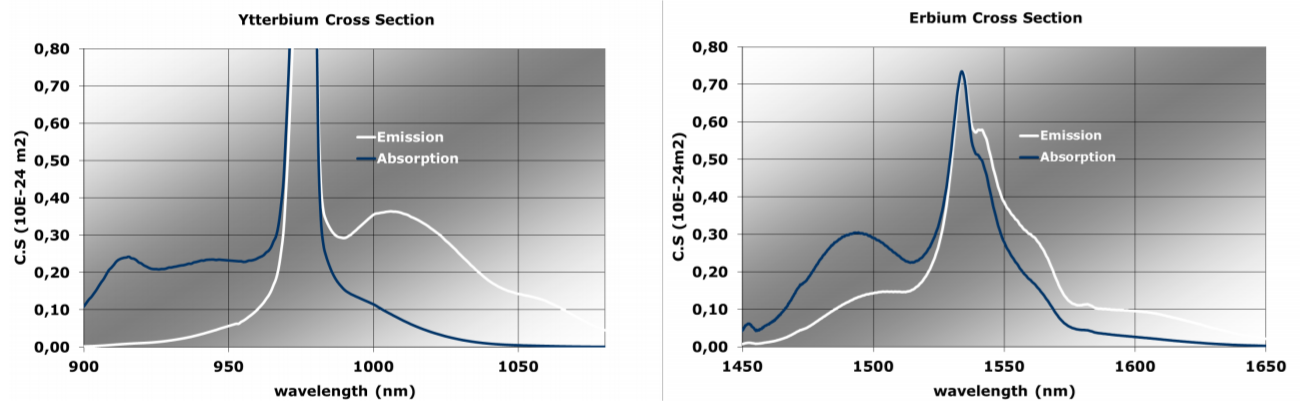

Yb Absorption Cross Section @ 915nm (m2)

2,51E-25

Yb Absorption Cross Section @ 975nm (m2)

1,42E-24

Er Absorption Cross Section @ 1536 nm (m2)

5,90E-25

Transfer constant K (m3/s)

1,00E-22

型號(hào)

芯徑

(μm)

芯吸收@1536nm (dB/m)

Core NA

包層吸收@976nm (dB/m)

包層直徑Flat/Flat (μm)

涂層直徑(μm)

IXF-2CF-AG-EY-O-5-105-125-HTC

5 +/- 0.5

75 +/- 15

0.19

3.7 +/- 0.5

125 +/- 3

215 +/- 15

IXF-2CF-EY-O-6-130-LNF-L1

6 +/- 0.5

25 - 35

0.19

2.4 - 3.6

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-6-130-LNF-L2

6 +/- 0.5

35 -45

0.19

3.2 - 4.8

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-6-130-LNF-RAD

6 +/- 0.5

> 30

0.19

> 2.0

125 +/- 3

245 +/- 15

IXF-2CF-AG-EY-O-9-105-125-HTC

8 +/- 0.5

70 +/- 10

0.14

9.0 +/- 2.0

125 +/- 3

215 +/- 15

IXF-2CF-EY-O-10-130

10 +/- 0.5

65 - 85

0.19

8.0 - 12

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-12-130-L1

12 +/- 1

40 - 50

0.19

8.0 - 10

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-12-130-L2

12 +/- 1

45 -65

0.19

10 - 14

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-12-130-L3

12 +/- 1

60 -80

0.19

12 - 18

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-12-130-POP

12 +/- 1

> 40

0.19

> 10

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-12-130-HPA

12 +/- 1

> 40

0.19

> 8.0

125 +/- 3

210 +/- 15

IXF-2CF-EY-O-12-130-RAD

12 +/- 1

50 - 70

0.19

9.2 - 14

125 +/- 3

210 +/- 15

IXF-2CF-EY-O-17-130-L1

17 +/- 1

40 - 50

0.19

16 - 20

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-17-130-L2

17 +/- 1

> 45

0.19

20 - 24

125 +/- 3

245 +/- 15

IXF-2CF-EY-O-25-250

25 +/- 1

> 45

0.08

> 12

250 +/- 10

345 +/- 20

IXF-2CF-EY-O-30-300

30 +/- 1

> 75

0.09

> 12

300 +/- 10

470 +/- 20

保偏光纖

IXF-2CF-EY-PM-6-130-LNF-L1

6 +/- 0.5

> 25

0.19

> 2.0

125 +/- 3

125 +/- 3

IXF-2CF-EY-PM-6-130-LNF-L2

6 +/- 0.5

35 - 45

0.19

3.2 - 4.8

125 +/- 3

125 +/- 3

IXF-2CF-EY-PM-6-130-LNF-RAD

6 +/- 0.5

> 30

0.09

> 2.0

125 +/- 3

245 +/- 15

IXF-2CF-EY-PM-12-130-L2

12 +/- 1

45 - 65

0.19

10 - 14

125 +/- 3

245 +/- 15

IXF-2CF-EY-PM-12-130-0.10

12 +/- 0.5

55 - 75

0.10

10 - 14

125 +/- 3

245 +/- 15

IXF-2CF-EY-PM-12-130-HPA

12 +/- 1

> 40

0.19

> 8.0

125 +/- 3

210 +/- 15

IXF-2CF-EY-PM-12-130-RAD

12 +/- 1

40 - 60

0.19

8.0 - 12.4

125 +/- 3

210 +/- 15

IXF-2CF-EY-PM-15-160

15 +/- 1

45 - 70

0.19

> 8.0

160 +/- 3

255 +/- 15

IXF-2CF-EY-PM-25-250

25 +/- 2

70 - 110

0.085

12.8 - 18

250 +/- 10

340 +/- 15

IXF-2CF-EY-PM-30-300

30 +/- 1

> 70

0.08

> 11

300 +/- 10

470 +/- 20

鉺鐿三包層光纖

IXF-3CF-EY-O-5-105-125

5 +/- 0.5

70 -80

0.19

2 - 3

125 +/- 3

215 +/- 15
