參數

數值

Erbium Lifetime (ms)

10

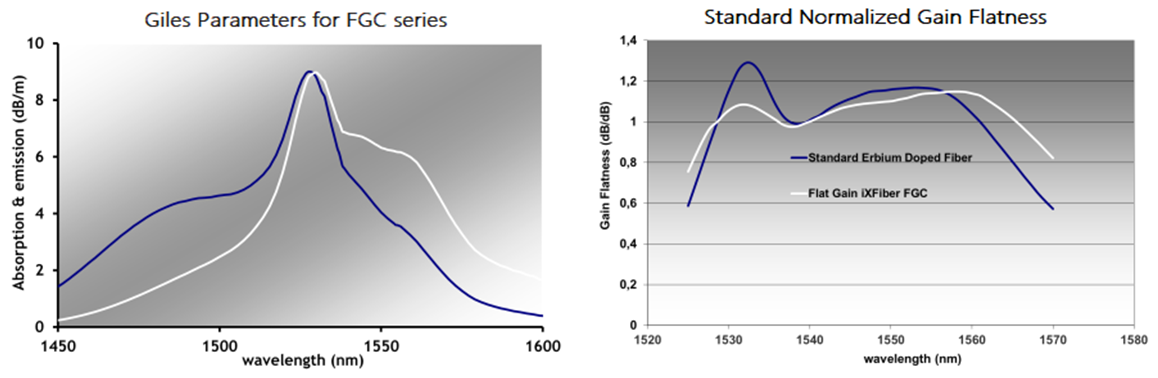

Er Absorption Cross Section @ 1530 nm (m2)

6,72E-25

Er Emission Cross Section @ 1530 nm (m2)

6,55E-25

型號

類型

Abs. @1480nm

(dB/m)

Abs. @1530nm (dB/m)

MFD
@1550nm (μm)

Background
losses (dB/km)

截止波長

(nm)

熔接損耗
(dB)

IXF-EDF-FGC-980-L1

C band

1.5 - 2

3.5 - 4.5

6.5 +/- 1

< 8

< 970

< 0.15 (to HI 980)

IXF-EDF-FGC-980-L2

C band

2 - 2.5

4.5 - 5.5

6.5 +/- 1

< 8

< 970

< 0.15 (to HI 980)

IXF-EDF-FGC-980-L3

C band

2.4 - 3

5.5 - 6.5

6.5 +/- 1

< 8

< 970

< 0.15 (to HI 980)

IXF-EDF-FGC-1480

C band

2.5 - 4.5

6 - 10

5.5 +/- 1

< 8

1200 +/- 100

< 0.15 (to HI 1060)

IXF-EDF-FGL-L1

C & L band

9 - 12

20 - 25

5.0 +/- 1

< 25

< 1300

< 0.15 (to HI 1060)

IXF-EDF-FGL-L2

C & L band

11 - 14

20 - 30

5 .0+/- 1

< 25

< 1300

< 0.15 (to HI 1060)

IXF-EDF-FGL-L3

C & L band

13 - 19

30 - 40

5.0 +/- 1

< 25

< 1300

< 0.15 (to HI 1060)

IXF-EDF-FGL-80

C & L band

9 - 16

25 - 30

5.0 +/- 1

< 25

< 1300

< 0.15 (to SMF 28)

IXF-EDF-SHD-L1

Ase Source

3.5 - 5.5

10 - 14

5.5 +/- 1

< 15

< 1150

< 0.15 (to HI 980)

IXF-EDF-SHD-L2

Ase Source

5 - 7

14 - 18

5.5 +/- 1

< 15

< 1150

< 0.15 (to HI 980)

IXF-EDF-HD

-

35 +/- 5

75 +/- 10

7.5 +/- 1

< 40

< 970

< 0.20 (to HI 980)

保偏光纖

IXF-EDF-FGC-980-PM

PM C band

2 - 3

4.5 - 6.5

6.5 +/- 1

< 8

< 970

< 0.20 (to HI 980)

IXF-EDF-FGC-1480-PM

PM C band

2.5 - 4.5

6 - 10

5.5 +/- 1

< 8

< 1400

< 0.20 (to HI 1060)

IXF-EDF-FGL-PM-L1

PM C & L band

6 - 10

15 - 21

5 +/- 1

< 25

< 1300

< 0.20 (to HI 1060)

IXF-EDF-FGL-PM-L2

PM C & L band

9 - 13

21 - 27

5 +/- 1

< 25

< 1300

< 0.20 (to HI 1060)

IXF-EDF-FGL-PM-L3

PM C & L band

12 - 15

27 - 33

5 +/- 1

< 25

< 1300

< 0.20 (to HI 1060)

IXF-EDF-HD-PM

-

35 +/- 5

75 +/- 10

7.5 +/- 1

< 40

< 970

< 0.20 (to HI 1060)

型號

Abs.
@980nm (dB/m)

Abs.
@1530nm (dB/m)

MFD
@1550nm (μm)

Background
losses (dB/km)

截止波長 (nm)

熔接損耗
(dB)

RIGV
(dB/krad)*

IXF-RAD-AMP-1

8 +/-1

14 +/- 2

5.5 +/- 1

< 15

< 1150

< 0.20 (to smf28)

< 0.07

IXF-RAD-AMP-2

17 +/- 2

25 +/- 3

5.5 +/- 1

< 20

< 1150

< 0.20 (to smf28)

< 0.03

IXF-RAD-AMP-3

13.5 +/- 1.5

16 +/- 2

9.5 +/- 1.5

< 15

< 1150

< 0.20 (to smf28)

< 0.005

保偏光纖

IXF-RAD-AMP-2-PM

15.5 +/- 1.5

25 +/- 3

5.5 +/- 1

< 20

< 1200

< 0.20 (to smf28)

< 0.03
